4. 2重剛体振り子(2)

アニメーション

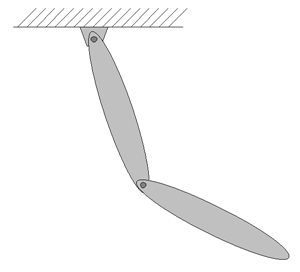

DoubleRigidPendulum_Schematic

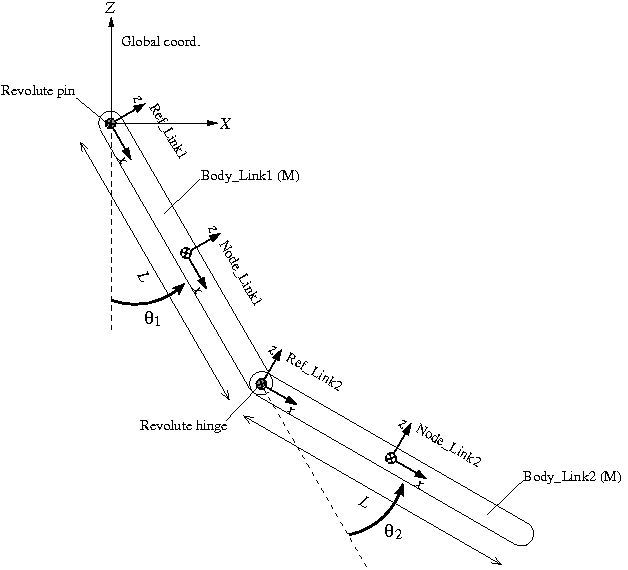

plan_double_rigid_pendulum_2

入力ファイル

double_rigid_pendulum_2.mbd
# double_rigid_pendulum_2.mbd

begin: data;
   problem: initial value;
end: data;

begin: initial value;
   initial time:   0.;
   final time:     5.;
   time step:      1.e-3;
   max iterations: 10;
   tolerance:      1.e-6;
end: initial value;

begin: control data;
   structural nodes: 2;
   rigid bodies:     2;
   joints:           2;
   gravity;
end: control data;

# Design Variables
set: real M = 1.; # Mass of Link1 and Link2
set: real L = 1.; # Length of Link1 and Link2

set: real theta1 = pi/6.; # Initial angle of Link1 w.r.t vertical line
set: real theta2 = pi/6.; # Initial angle of Link2 w.r.t Link1

# Reference Labels
set: integer Ref_Link1 = 1;
set: integer Ref_Link2 = 2;

# Node Labels
set: integer Node_Link1 = 1;
set: integer Node_Link2 = 2;

# Body Labels
set: integer Body_Link1 = 1;
set: integer Body_Link2 = 2;

# Joint Labels
set: integer JoRevp_Link1       = 1;
set: integer JoRevh_Link1_Link2 = 2;

# Reference
reference: Ref_Link1,
   null,                        # absolute position
   euler, 0., pi/2.-theta1, 0., # absolute orientation
   null,                        # absolute velocity
   null;                        # absolute angular velocity

reference: Ref_Link2,
   reference, Ref_Link1, L, 0., 0.,              # absolute position
   reference, Ref_Link1, euler, 0., -theta2, 0., # absolute orientation
   reference, Ref_Link1, null,                   # absolute velocity
   reference, Ref_Link1, null;                   # absolute angular velocity

begin: nodes;
   structural: Node_Link1, dynamic,
      reference, Ref_Link1, 1./2.*L, 0., 0., # absolute position
      reference, Ref_Link1, eye,             # absolute orientation
      reference, Ref_Link1, null,            # absolute velocity
      reference, Ref_Link1, null;            # absolute angular velocity

   structural: Node_Link2, dynamic,
      reference, Ref_Link2, 1./2.*L, 0., 0., # absolute position
      reference, Ref_Link2, eye,             # absolute orientation
      reference, Ref_Link2, null,            # absolute velocity
      reference, Ref_Link2, null;            # absolute angular velocity

end: nodes;

begin: elements;
   body: Body_Link1, Node_Link1,
      M,                                # mass
      null,                             # relative center of mass
      diag, 0., M*L^2./12., M*L^2./12.; # inertia matrix

   body: Body_Link2, Node_Link2,
      M,                                # mass
      null,                             # relative center of mass
      diag, 0., M*L^2./12., M*L^2./12.; # inertia matrix

   joint: JoRevp_Link1,
      revolute pin,
         Node_Link1,
            reference, Ref_Link1, null,                                # relative offset
            hinge, reference, Ref_Link1, 1, 1., 0., 0., 3, 0., 1., 0., # relative axis orientation
            reference, Ref_Link1, null,                                # absolute pin position
            hinge, reference, Ref_Link1, 1, 1., 0., 0., 3, 0., 1., 0.; # absolute pin orientation

   joint: JoRevh_Link1_Link2,
      revolute hinge,
         Node_Link1,
            reference, Ref_Link2, null,                                # relative offset
            hinge, reference, Ref_Link2, 1, 1., 0., 0., 3, 0., 1., 0., # relative axis orientation
         Node_Link2,
            reference, Ref_Link2, null,                                # relative offset
            hinge, reference, Ref_Link2, 1, 1., 0., 0., 3, 0., 1., 0.; # relative axis orientation

   gravity: 0., 0., -1., const, 9.81;

end: elements;
