5. クランク‐スライダ機構

アニメーション

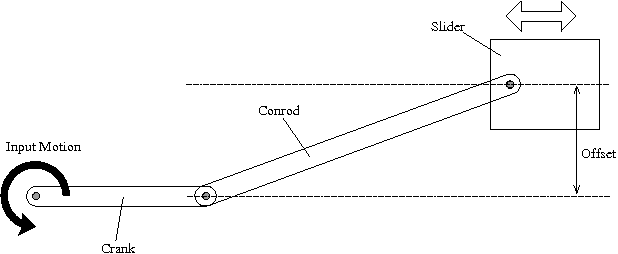

image_crank_slider

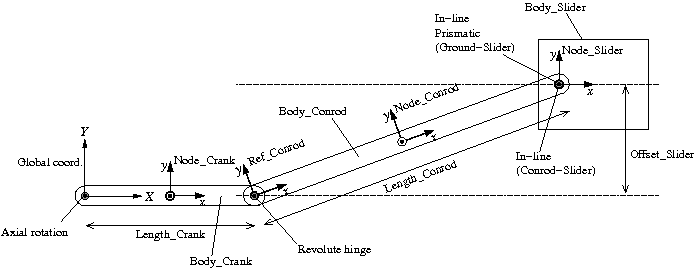

plan_crank_slider

入力ファイル

crank_slider.mbd
# crank_slider.mbd

#-----------------------------------------------------------------------------
# [Data Block]

begin: data;
   problem: initial value;
end: data;

#-----------------------------------------------------------------------------
# [<Problem> Block]

begin: initial value;
   initial time:   0.;
   final time:     5.;
   time step:      1.e-2;
   max iterations: 10;
   tolerance:      1.e-6;
end: initial value;

#-----------------------------------------------------------------------------
# [Control Data Block]

begin: control data;
   structural nodes: 4;
   rigid bodies:     3;
   joints:           6;
end: control data;

#-----------------------------------------------------------------------------
# Design Variables
set: real Mass_Crank    = 1.;
set: real Mass_Conrod   = 1.;
set: real Mass_Slider   = 1.;
set: real Length_Crank  = 0.2;
set: real Length_Conrod = 0.4;
set: real Offset_Slider = 0.05;

#-----------------------------------------------------------------------------
# Reference Labels
set: integer Ref_Conrod = 1;

# Node Labels
set: integer Node_Ground = 1;
set: integer Node_Crank  = 2;
set: integer Node_Conrod = 3;
set: integer Node_Slider = 4;

# Body Labels
set: integer Body_Crank  = 1;
set: integer Body_Conrod = 2;
set: integer Body_Slider = 3;

# Joint Labels
set: integer JoClamp_Ground        = 1;
set: integer JoAxrot_Ground_Crank  = 2;
set: integer JoRevh_Crank_Conrod   = 3;
set: integer JoInlin_Conrod_Slider = 4;
set: integer JoInlin_Ground_Slider = 5;
set: integer JoPrism_Ground_Slider = 6;

#-----------------------------------------------------------------------------
# Intermediate Variables
set: real Izz_Crank  = Mass_Crank*Length_Crank^2./12.;
set: real Izz_Conrod = Mass_Conrod*Length_Conrod^2./12.;

#-----------------------------------------------------------------------------
# References
reference: Ref_Conrod,
   Length_Crank, 0., 0.,                             # absolute position
   euler, 0., 0., asin(Offset_Slider/Length_Conrod), # absolute orientation
   null,                                             # absolute velocity
   null;                                             # absolute angular velocity

#-----------------------------------------------------------------------------
# [Nodes Block]

begin: nodes;

   #-----------------------------------------------------------------------------
   # Nodes
   structural: Node_Ground, static,
      0., 0., 0., # absolute position
      eye,        # absolute orientation
      null,       # absolute velocity
      null;       # absolute angular velocity

   structural: Node_Crank, dynamic,
      Length_Crank/2., 0., 0., # absolute position
      eye,                     # absolute orientation
      null,                    # absolute velocity
      null;                    # absolute angular velocity

   structural: Node_Conrod, dynamic,
      reference, Ref_Conrod, Length_Conrod/2., 0., 0., # absolute position
      reference, Ref_Conrod, eye,                      # absolute orientation
      null,                                            # absolute velocity
      null;                                            # absolute angular velocity

   structural: Node_Slider, dynamic,
      reference, Ref_Conrod, Length_Conrod, 0., 0., # absolute position
      eye,                                          # absolute orientation
      null,                                         # absolute velocity
      null;                                         # absolute angular velocity

end: nodes;

#-----------------------------------------------------------------------------
# [Elements Block]

begin: elements;

   #-----------------------------------------------------------------------------
   # Bodies
   body: Body_Crank, Node_Crank,
      Mass_Crank,              # mass
      null,                    # relative center of mass
      diag, 1., 1., Izz_Crank; # inertia matrix

   body: Body_Conrod, Node_Conrod,
      Mass_Conrod,              # mass
      null,                     # relative center of mass
      diag, 1., 1., Izz_Conrod; # inertia matrix

   body: Body_Slider, Node_Slider,
      Mass_Slider, # mass
      null,        # relative center of mass
      eye;         # inertia matrix

   #-----------------------------------------------------------------------------
   # Joints
   joint: JoClamp_Ground,
      clamp,
         Node_Ground,
            null, # absolute position
            eye;  # absolute orientation

   joint: JoAxrot_Ground_Crank,
      axial rotation,
         Node_Ground,
            null,                     # relative offset
            hinge, eye,               # relative orientation
         Node_Crank,
            -Length_Crank/2., 0., 0., # relative offset
            hinge, eye,               # relative orientation
         ramp, 2.*pi, 0., 1., 0.;     # angular velocity

   joint: JoRevh_Crank_Conrod,
      revolute hinge,
         Node_Crank,
            reference, Ref_Conrod, null,       # relative offset
            hinge, reference, Ref_Conrod, eye, # relative axis orientation
         Node_Conrod,
            reference, Ref_Conrod, null,       # relative offset
            hinge, reference, Ref_Conrod, eye; # relative axis orientation

   joint: JoInlin_Conrod_Slider,
      in line,
         Node_Conrod,
            Length_Conrod/2., 0., 0., # relative line position
            eye,                      # relative orientation
         Node_Slider;

   joint: JoInlin_Ground_Slider,
      in line,
         Node_Ground,
            0., Offset_Slider, 0.,         # relative line position
            1, 0., 0., -1., 3, 1., 0., 0., # relative orientation
         Node_Slider;

   joint: JoPrism_Ground_Slider,
      prismatic,
         Node_Ground,
         Node_Slider;

end: elements;
